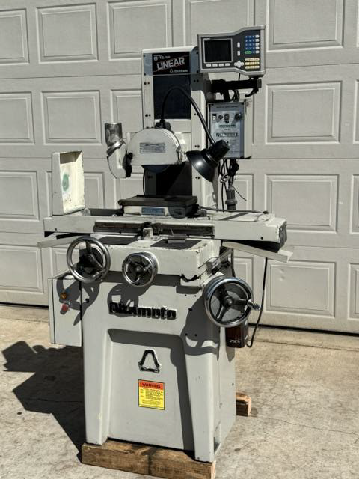

Okamoto Linear 6-12/14 Surface Grinder
Condition: Very Good
$3,950.00
Financing Available Approvals in as little as 24 hours
QTY
Talk to a Rep
Login or signup to earn
3950 Reward points.
Description:
View Quotation with Specifications
INCLUDES: Acu-Rite 2 axis DRO, 6”x12” OS Walker Permanent Magnetic Chuck, Neutrofier II Magnetic chuck control, Machine Lamp, One Shot Way Lube.
Specifications:
- Maximum Grinding Chuck Size: 6.0” x 14.0”
- Maximum Distance under Wheel to Table: 14.0”
- Table Load Capacity w/Chuck: 220 lbs.
- Maximum Table Travel: 14.0”
- Maximum Cross Travel: 7.5”
- Grinding Wheel Size: 8.0” x ¾” x 1¼”
- Spindle Horsepower: 2.0 Hp
- Spindle Speed: 3,450 RPM
- Floor Space Required: 54” x 45” x 75”
- Machine Weight: 1,650 lbs.
