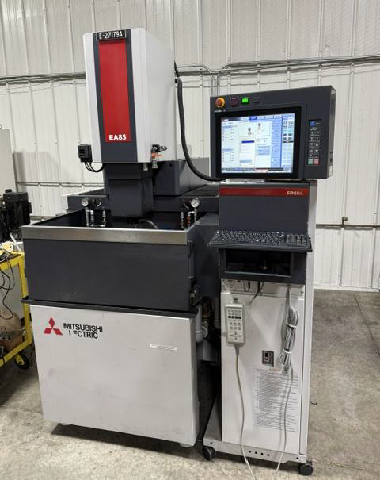

Mitsubishi EA8S CNC RAM EDM (2014)
Condition: Excellent
$39,500.00
Financing Available Approvals in as little as 24 hours
QTY
Talk to a Rep
Login or signup to earn
39500 Reward points.
Description:
View Quotation with Specifications
INCLUDES: 15” TFT Color Touchscreen display, System 3R C-Axis, FP80S Power Supply, Di Electric Chiller, Manual 6”x14” Magnetic Chuck, Auto Way Lubrication, Remote Hand Pendant, RS232 Interface, Auto Fill/Drain
Specifications:
- Internal Tank Size: 31.5” x 20.5” x 11.75”
- Table Size: 19.7” x 13.8”
- X Axis Travel: 11.8”
- Y-Axis Travel: 9.8”
- Z Axis Travel: 9.8”
- Maximum Work Piece Weight: 1,210 lbs.
- Power Supply Maximum Peak Amperes: 80 A
- C Axis Rotation: .001°Increments
- Machine Weight: 2,640 lbs.
- Floor Space Required: 96” x 94” x 80”
- Power Requirements: 200-220V – 3 Ph – 8 KVA
