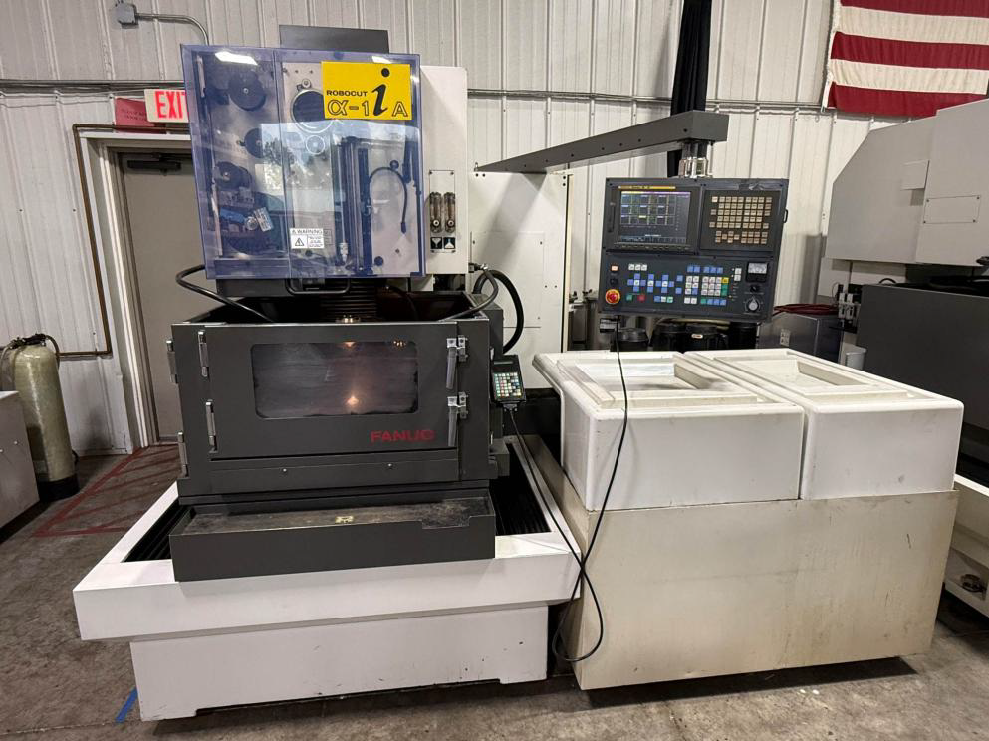

Fanuc 1iA-SAWF CNC Wire EDM (2000)
Condition: Good
$14,900.00
Financing Available Approvals in as little as 24 hours
QTY
Talk to a Rep
Login or signup to earn
14900 Reward points.
Description:
View Quotation with Specifications
INCLUDES: Automatic Wire Threader, AC/DC Switchable Power Supply, 22# Wire Spool Capacity, Filtration System, Water Chiller, Advanced Pendant Control, Linear Glass Scale Feedback, Dual Halogen Machine Lights
Specifications:
- Maximum Workpiece Dimensions: 33.0” x 27.3” x 12.2”
- Workpiece Weight: 2,200 lbs.
- Machine Range: 20.6” x 14.6” x 12.0”
- U/V Travel: +/- 2.36”
- Resolution: .000040”
- Wire Diameter: .004” - .012” (.010” Guides)
- Max. Workpiece AWF Height: 11.8”
- Programmable Axes: 5 Axis
- Flushing Type: Submerged Cutting
- Machine Dimensions: 112” x 130” x 96”
- Machine Weight: 6,000 lbs.
- Input Power (Total): 200-220V, 3 Phase, 13 KVA
