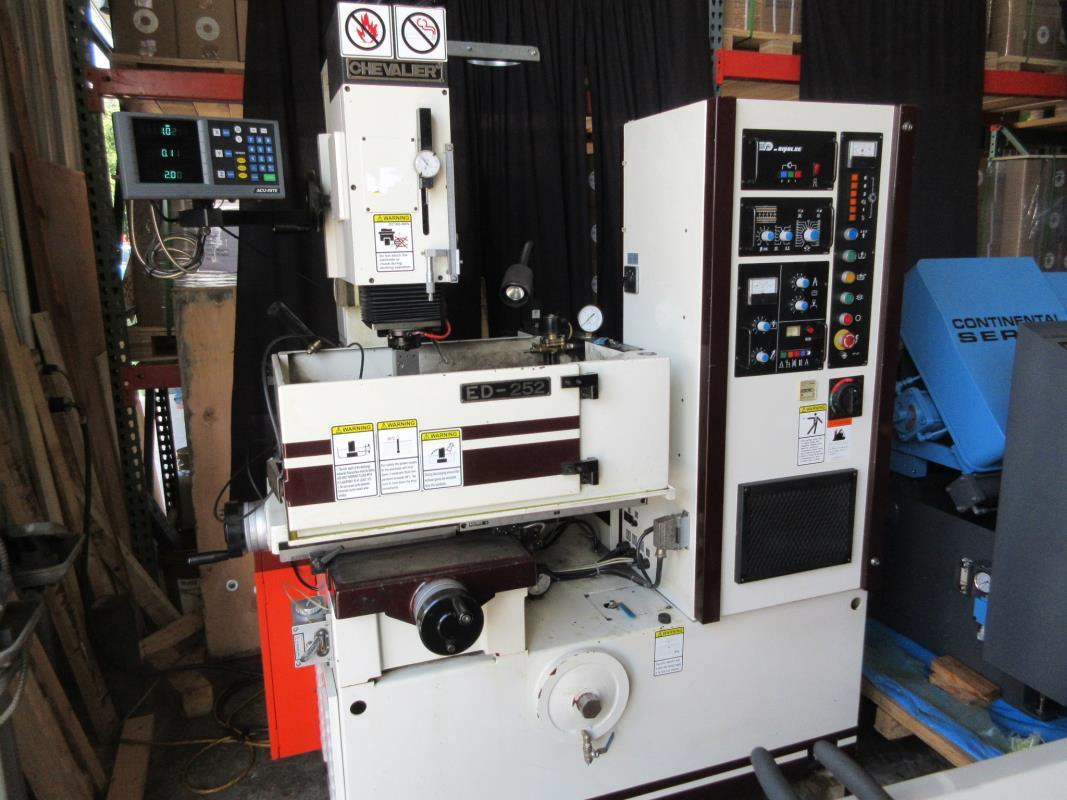

Chevalier ED-252 RAM Type EDM
Condition: Very Good
$5,950.00
Financing Available Approvals in as little as 24 hours
QTY
Talk to a Rep
Login or signup to earn
5950 Reward points.
Description:
View Quotation with Specifications
HOURS: 3280
INCLUDES: 3 Axis Acu-Rite Digital Readout w/ Depth Control, System 3R Manual Macro Chuck, System 3R 653 Adapter to 20mm Electrodes, Fire Suppression System, Halogen Machine Lamp
Specifications:
- Internal Tank Dimensions: 30.3” x 20.0” x 10.6”
- Table Dimensions: 23.6” x 11.8”
- X Axis Travel: 11.8”
- Y Axis Travel: 7.9”
- Z Axis Travel: 5.9”
- Backslide Travel: 7.9”
- Power Supply Peak Amperes: 50 Amps
- Maximum Work Piece Weight: 1,100 lbs.
- Dielectric Capacity: 80 Gallons
