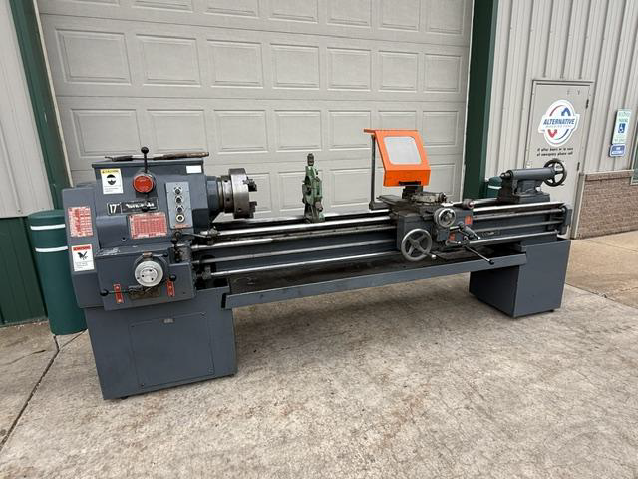

South Bend 17" Turn-nado Engine Lathe
Condition: Very Good
$8,450.00
Financing Available Approvals in as little as 24 hours
QTY
Talk to a Rep
Login or signup to earn
8450 Reward points.
Description:
View Quotation with Specifications
INCLUDES: 12” 3 Jaw Chuck, 12” 4 Jaw Chuck, Front Hand Wheel Collet Chuck, 12.5” Face Plate, 15” Face Plate, Micro Bed Stop, Steady Rest, Chuck Guard, Live Center (2)
Specifications:
- Swing Over Bed Ways: 17.125”
- Swing Over Cross Slide: 10.5”
- Swing in Gap: N/A
- Distance Between Centers: 80.0”
- Spindle Bore: 2.562”
- Spindle Nose: D1-8
- Spindle Horsepower: 7.5/3.75
- Spindle Speed: (9) 60 -1,580 RPM
- Tailstock Taper: 4MT
- Voltage: 460/3/60
- Machine Weight: 3,800 lbs.
