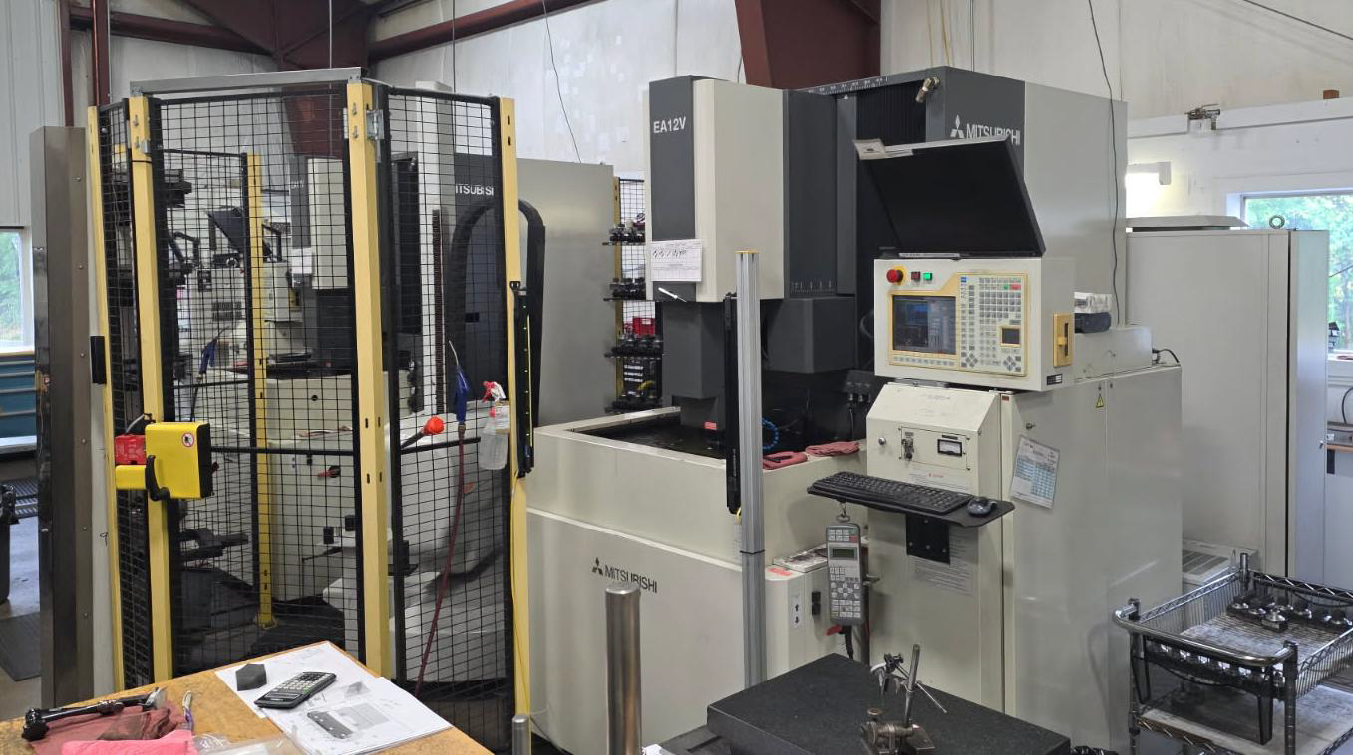

Mitsubishi EA12VM CNC RAM Type EDM
Condition: Very Good
$55,000.00
Description:
View Quotation with Specifications
INCLUDES: C Axis, Fire Ext. System, Automatic Way Lubrication, DiElectric Fluid Chiller, Remote Pendants.Systerm 3R Workmaster Robot with Dynafix Bookshelf and Macro Combi Rotary Magazine 300 Position Electrode Carousel, 10 Positions for Dynafix pallets, guarding.
Specifications:
- Work Tank Internal Dimensions: 33.5” x 23.5” x 13.7”
- Table Size: 27.5” x 19.6”
- X Axis Travel: 15.75”
- Y Axis Travel: 11.81”
- Z Axis Travel: 11.81”
- C Axis Increment Command: .001°
- Automatic Electrode Changer Capacity: 32 Electrodes
- Dielectric Fluid Capacity: 90 Gallons
- Maximum Average Machining Current: 60 Amps
- Machine Weight (Approx.): 4,000 lbs
- Floor Space Required: 78” x 93” x 91”
- Input Voltage Required: 200-220/3/60
