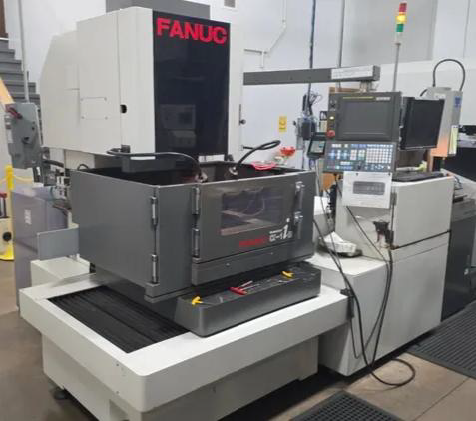

Fanuc Robocut 1iB/SAWF CNC Wire EDM
Condition: Good
$27,500.00
Description:
View Quotation with Specifications
INCLUDES: Automatic Wire Threading, Submerged Cutting, Linear Glass Scale Feed Back, Double door option
AC/DC Anti Electrolysis Power Supply, Fanuc 180is-WB CNC Control, 5 Axis Programmable, Windows OS Interface, Ethernet Interface, Water Chiller, Advanced Pendant, Stainless Steel Work Tank, Wire Alignment Device, MF
Specifications:
- Maximum Workpiece Dimensions: 40.5” x 28” x 12.2”
- Maximum Workpiece Weight: 3,550 lbs.
- Machine Range: 21.7” x 14.6” x 12.2”
- U/V Travel: +/- 2.364”
- Resolution: .000004”
- Wire Diameter: .004” - .012” (.010” Guides)
- Max. Workpiece AWF Height: 12.0”
- Wire Spool Capacity: 35 lb.
- Factory Rated Cutting Speed: 31 sq/in/hr.
- Floor Space Required: 119” x 103” x 91”
- Machine Weight: 6,700 lbs
- Input Power (Total): 200-220, 3 Phase, 13KVA
