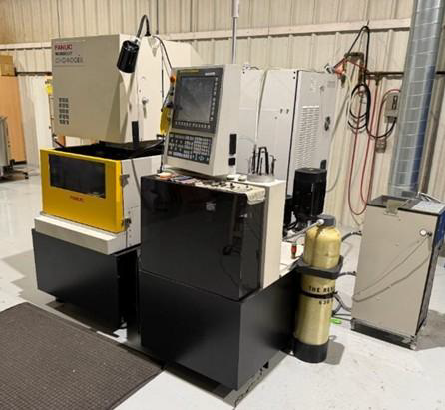

Fanuc C400iA CNC Wire EDM (2013)
Condition: Good
$59,500.00
Description:
View Quotation with Specifications
INCLUDES: 15” Color LCD (Touchscreen), Heidenhain X-Y Glass Scales, Automatic Wire Threader, Submerged Cutting, Fluid Chiller, (2) LED Work Lights, Ethernet, (2) USB Ports, Programmable Flushing, Advanced Pendant,
Wire Alignment Gauge
Specifications:
- Internal Worktank Size: 30.5” x 23.6” x 9.8”
- Maximum Workpiece Weight: 1,100 lbs.
- Machine Range: 14.6” x 10.6” x 10.2”
- U/V Travel: +/- 2.36”
- Taper Angle: +/- 12° @ 10”
- Wire Diameter: .004” - .012” (Equipped with .010” Guides)
- Max. Submerged Cutting Depth: 9.84”
- Dielectric Fluid Capacity: 145 Gallons
- Maximum Wire Spool Size: 35 lbs.
- CNC Control Model: Fanuc 31i-WB
- Machine Dimensions: 92” x 105” x 77”
- Machine Weight: 4,000 lbs.
- Input Power (Total): 200 – 220V – 3 Phase, 13 KVA
