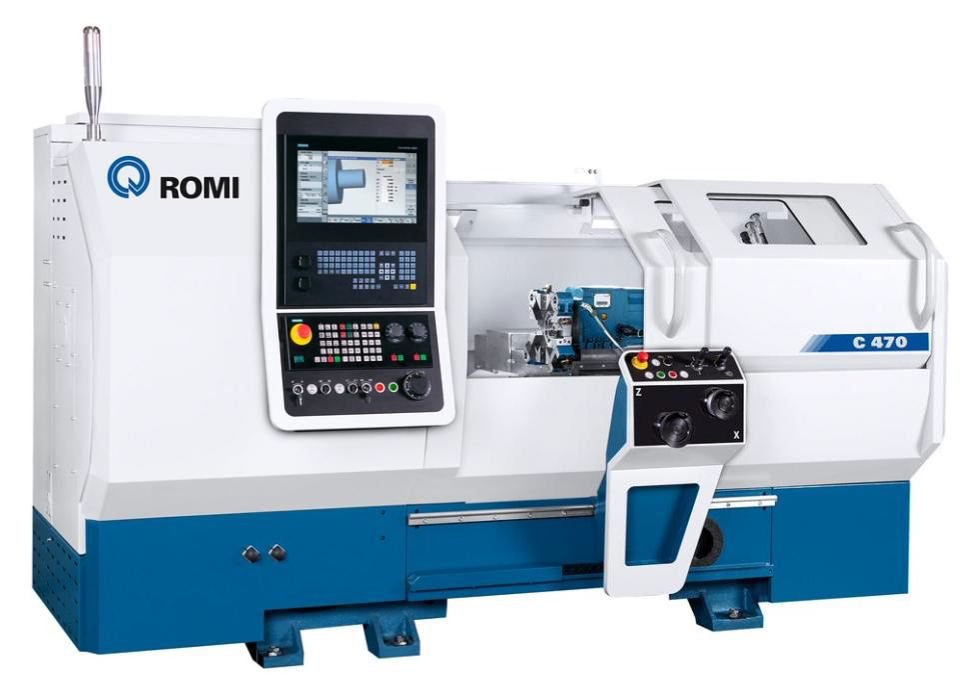

ROMI C470 Combination Lathe
$68,224.00
Specifications:
- Centers height mm (in): 240 (9.45)
- Distance between centers m (in): 1.0 (39)
- Swing over bed mm (in): 470 (18.5)
- Swing over cross slide mm (in): 200 (7.9)
- Swing over saddle wings mm (in): 430 (16.9)
- Cross slide travel (X axis) mm (in): 220 (8.7)
- Longitudinal carriage travel (Z axis) mm (in): 1,065 (42)
- Width mm (in): 305 (12)
- Height mm (in): 290 (11.4) Headstock
- Spindle nose ASA: A2-5", A2-6"
- Spindle hole diameter mm (in): 53 (2.1), 65 (2.6)
- Transmission system: Direct drive
- Speed ranges: rpm: 4 to 4,000, 3 to 3,000 Feeds
- Rapid traverse – Z axis m/min (in/min): 10 (394)
- Rapid traverse – X axis m/min (in/min): 10 (394)
- Body positioning: Manual
- Quill drive: Manual (std) / Pneumatic or Hydraulic (opt)
- Maximum quill stroke mm (in): 120 (4.7)
- Quill diameter mm (in): 60 (2.4)
- Quill taper hole CM: 4 Installed Power
- AC Main motor (S - 40% rating) hp/kW: 12.5 / 9
- AC Main motor (continuous rating) kVA: 15
- Floor space required - 1.0 m between centers m (in): 3.10 x 1.24 (122 x 49)
- Approx. net weight - 1.0 m between centers kg (lbs): 2,500 (5,500)
