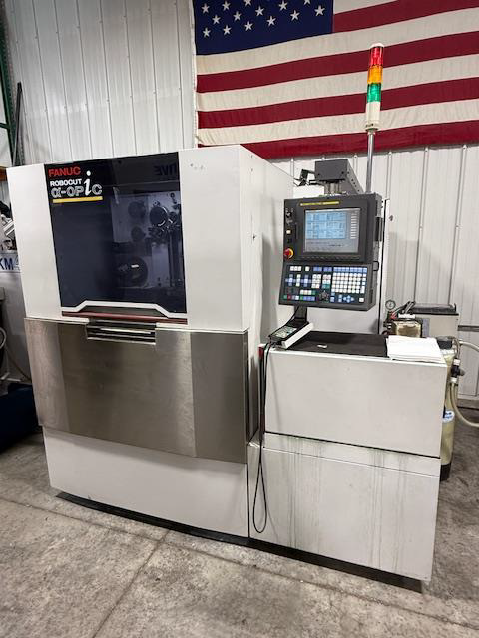

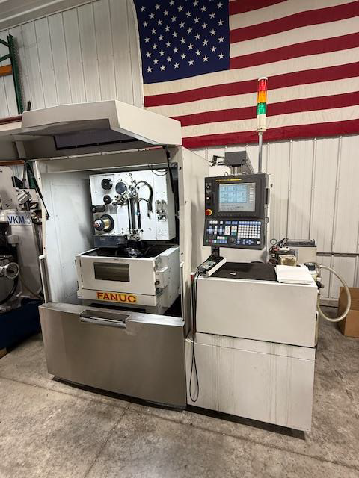

Fanuc Robocut 0PiC/AWF
Condition: Good
$22,500.00
Save $7,000.00
(Reg. $29,500.00)
Description:
View Quotation with Specifications
The Fanuc Robocut 0PiC/AWF includes Submerged Cutting, Automatic Wire Threader, Water Chiller, Non Electrolysis Power Supply (AC), Ultra-High Resolution Glass Scale Feedback .05um, Ultra High Resolution Servo Motors, Ultra High Precision Large Dia 32 mm ball screws, Auto ball screw greasing, Hardened Stainless Table, Inverter chiller, 22# Wire Spool.
Specifications:
- Maximum Workpiece Dimensions: 6.0” x 17.0” x 7.”
- Workpiece Weight: 1,100 lbs.
- Table Dimensions: 21.0” x 14.0” (3 Side)
- Machine Range: 12.6” x 8.6 x 7.0”
- U/V Travel: ± 2.364”
- Taper Angle: 30°@ 3.26”
- Wire Diameter: .002” - .012”
- Max. Workpiece AWF Height: 7.0”
- Factory Rated Cutting Speed: 28 sq/in/hr
- CNC Control: Fanuc 18W (64 bit) – 5 Axis
- Machine Dimensions: 92” x 86”
- Machine Weight: 4,000 lbs.
- Input Power (Total): 208/3/60 – 13KVA
