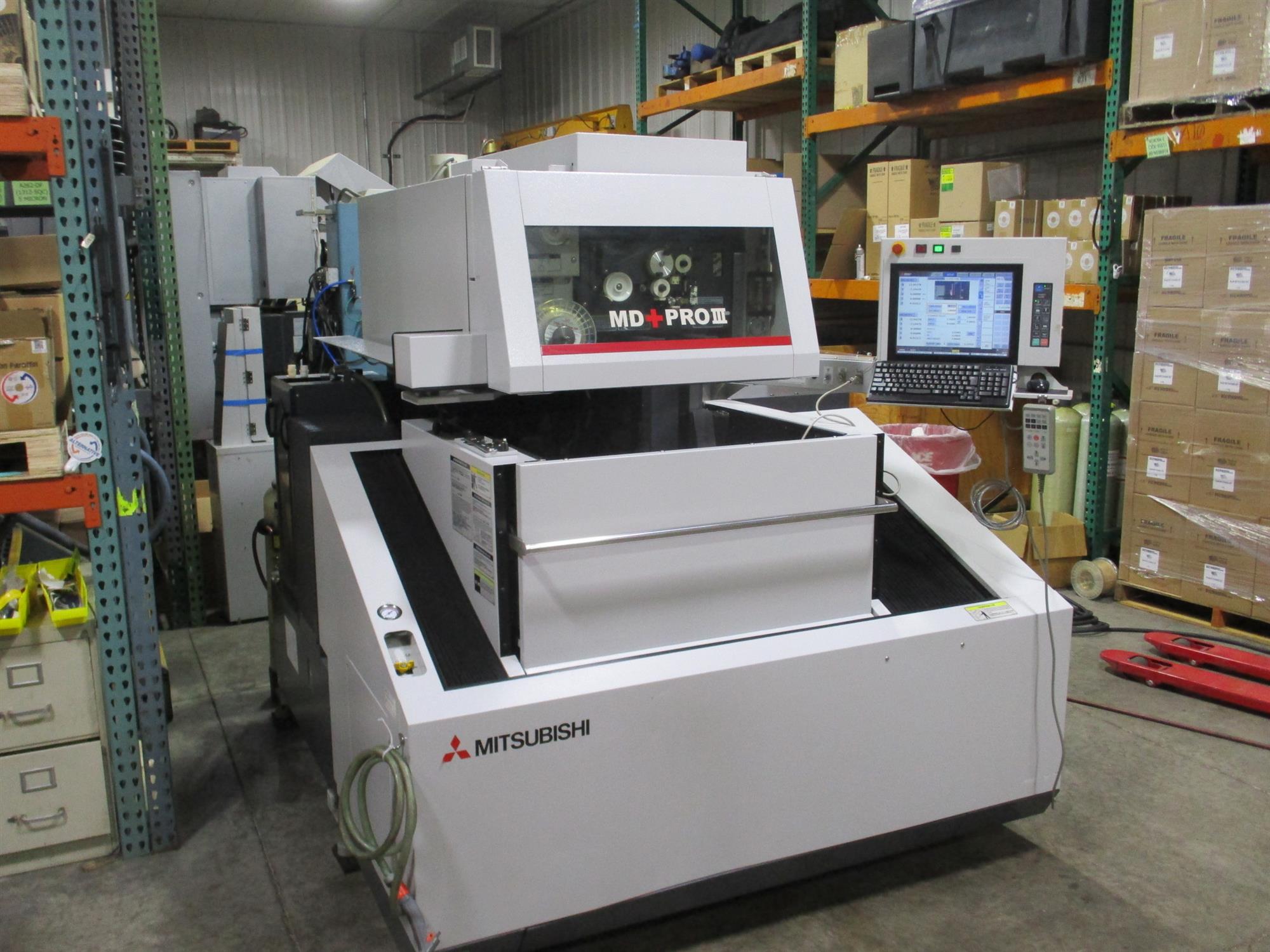

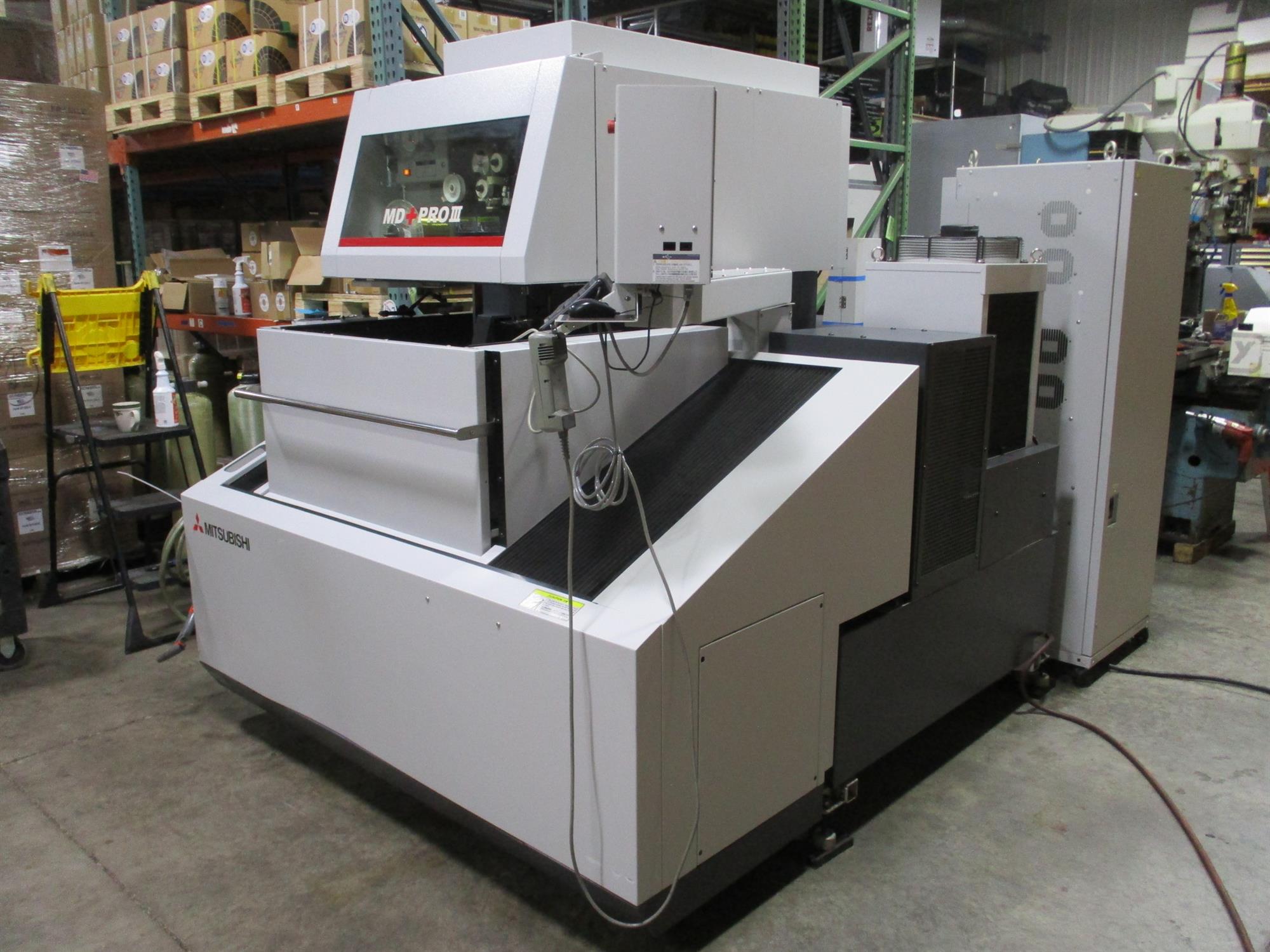

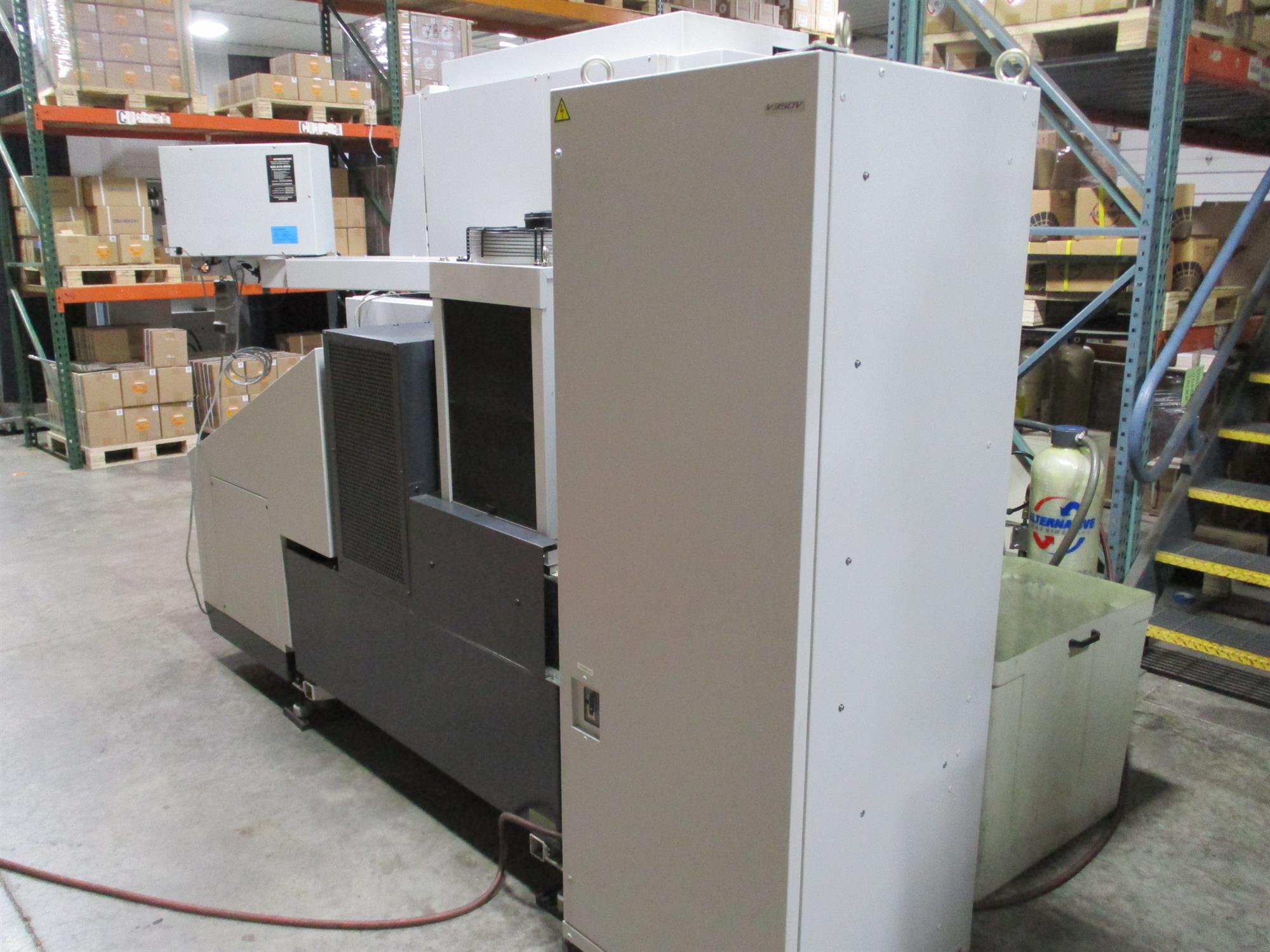

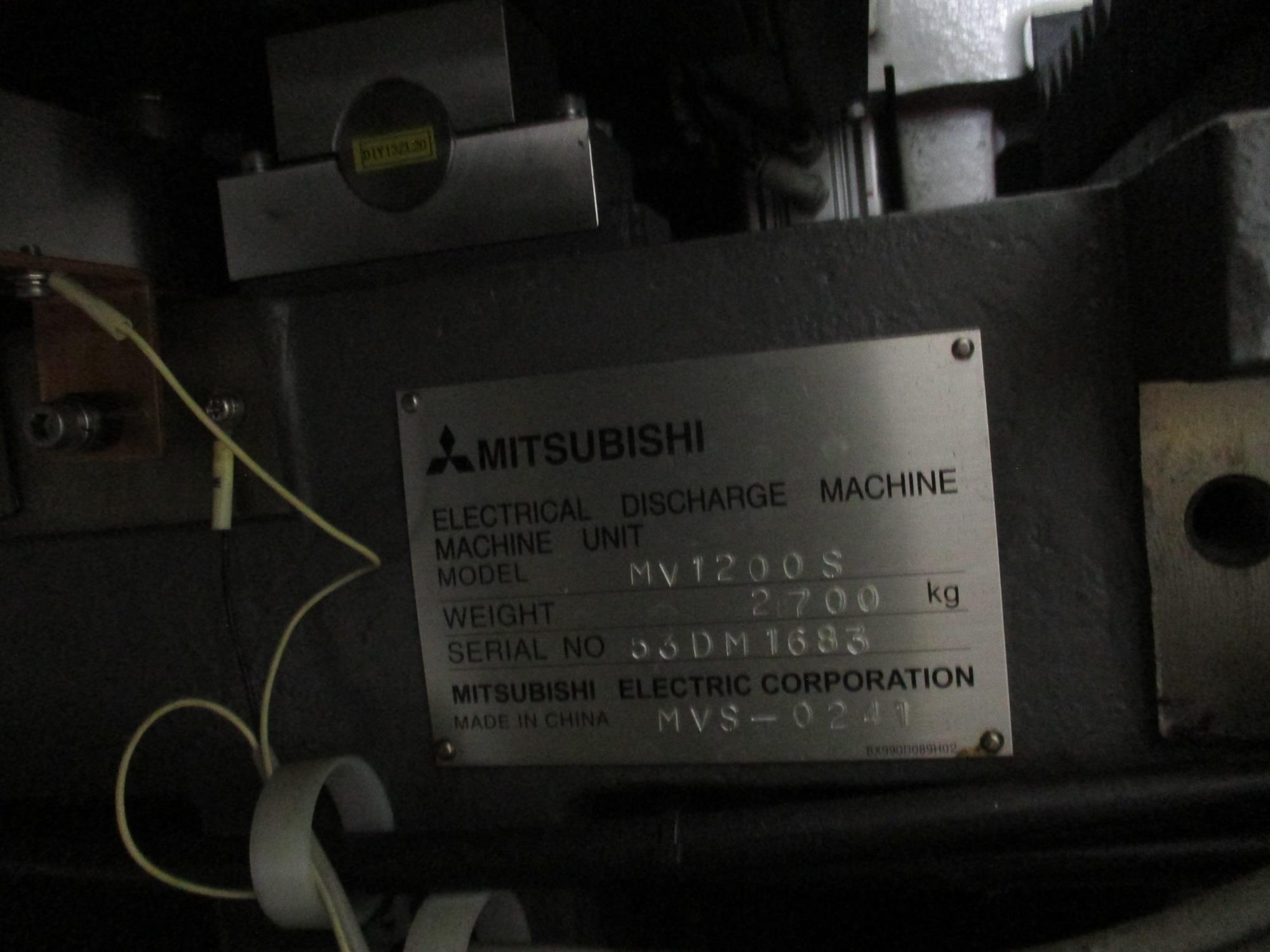

Mitsubishi MC1200S MED+PRO3 CNC Wire EDM
Condition: Very Good
$42,500.00
Save $7,000.00
(Reg. $49,500.00)
Description:
View Quotation with Specifications

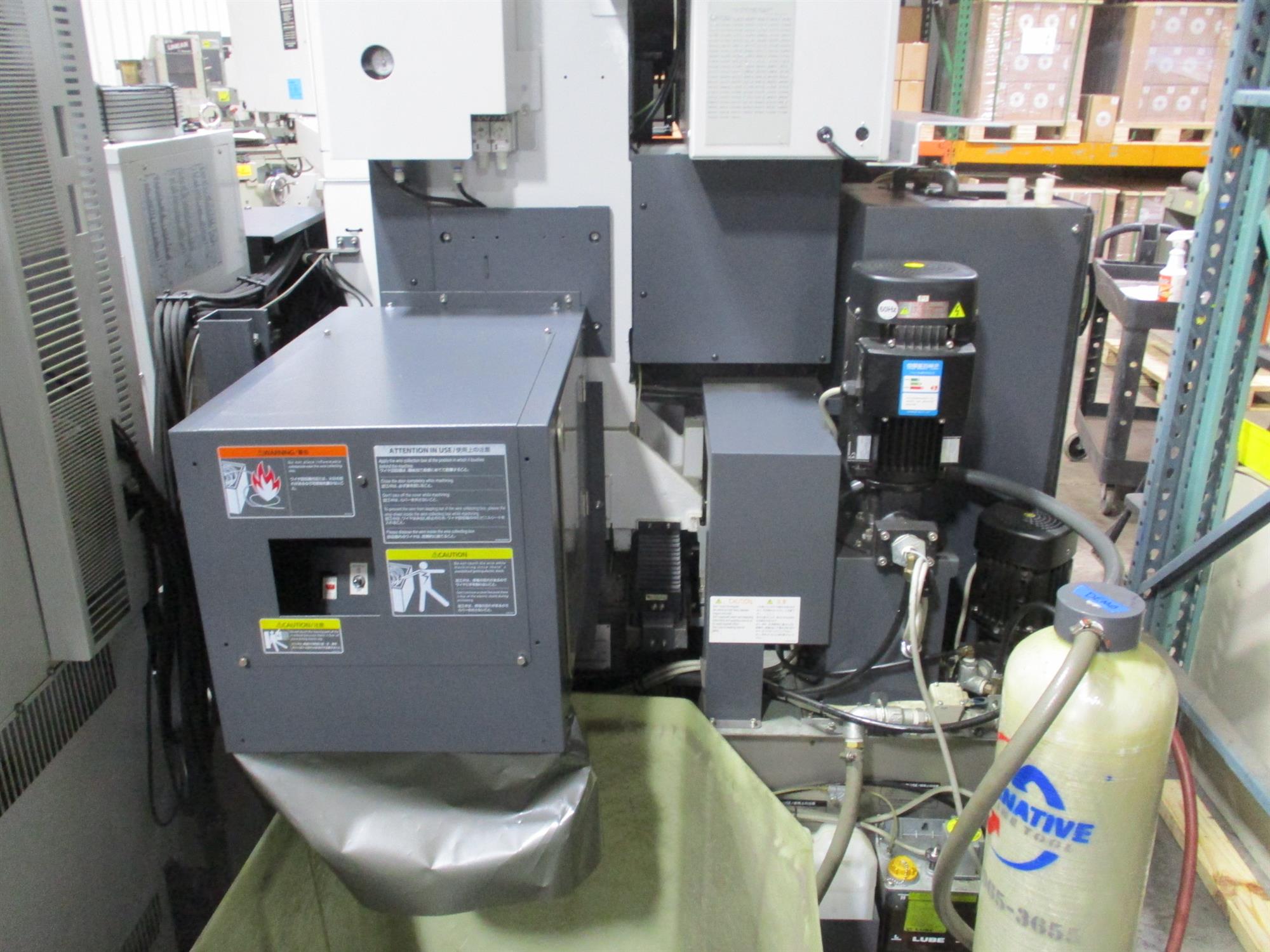

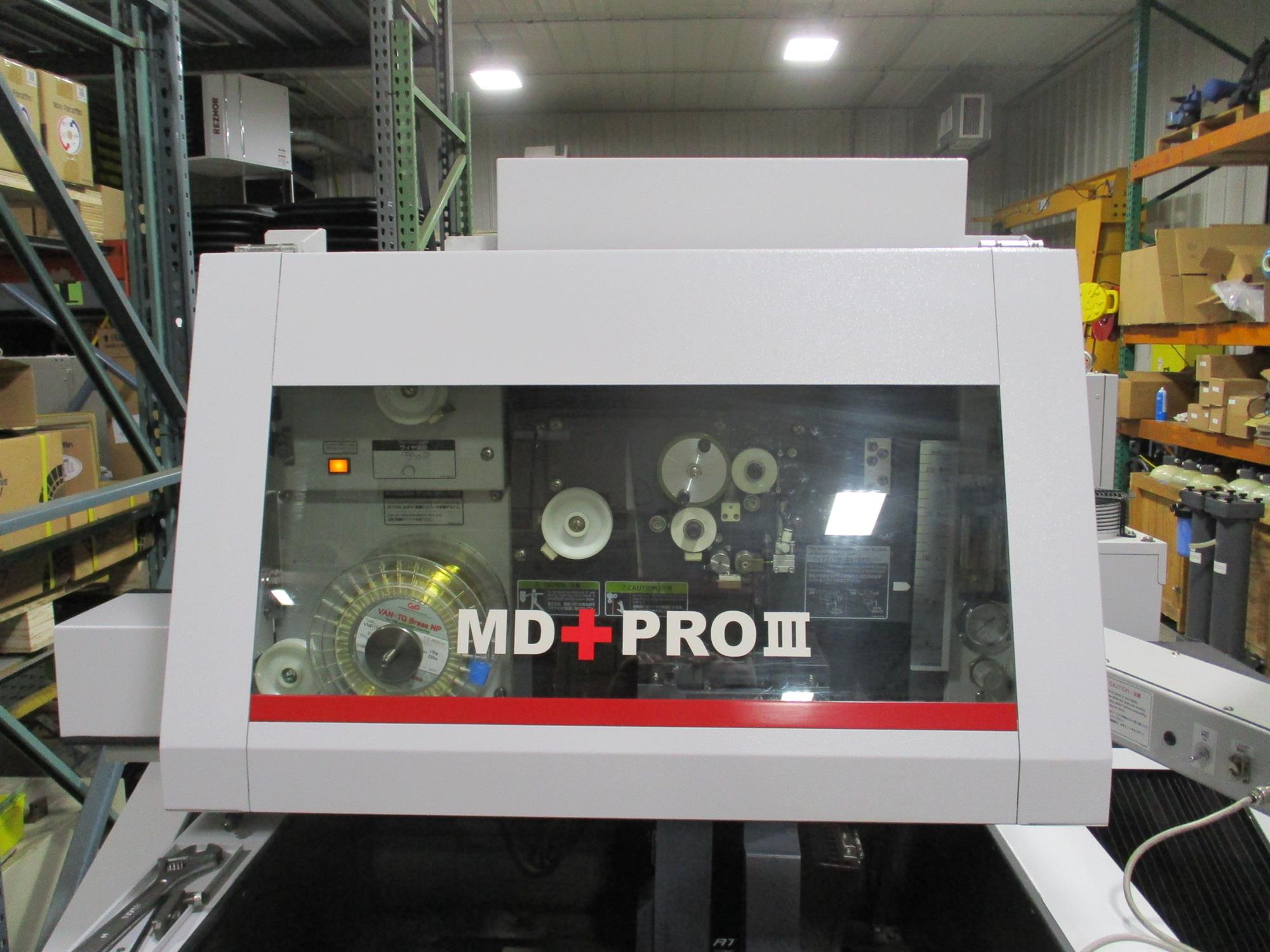

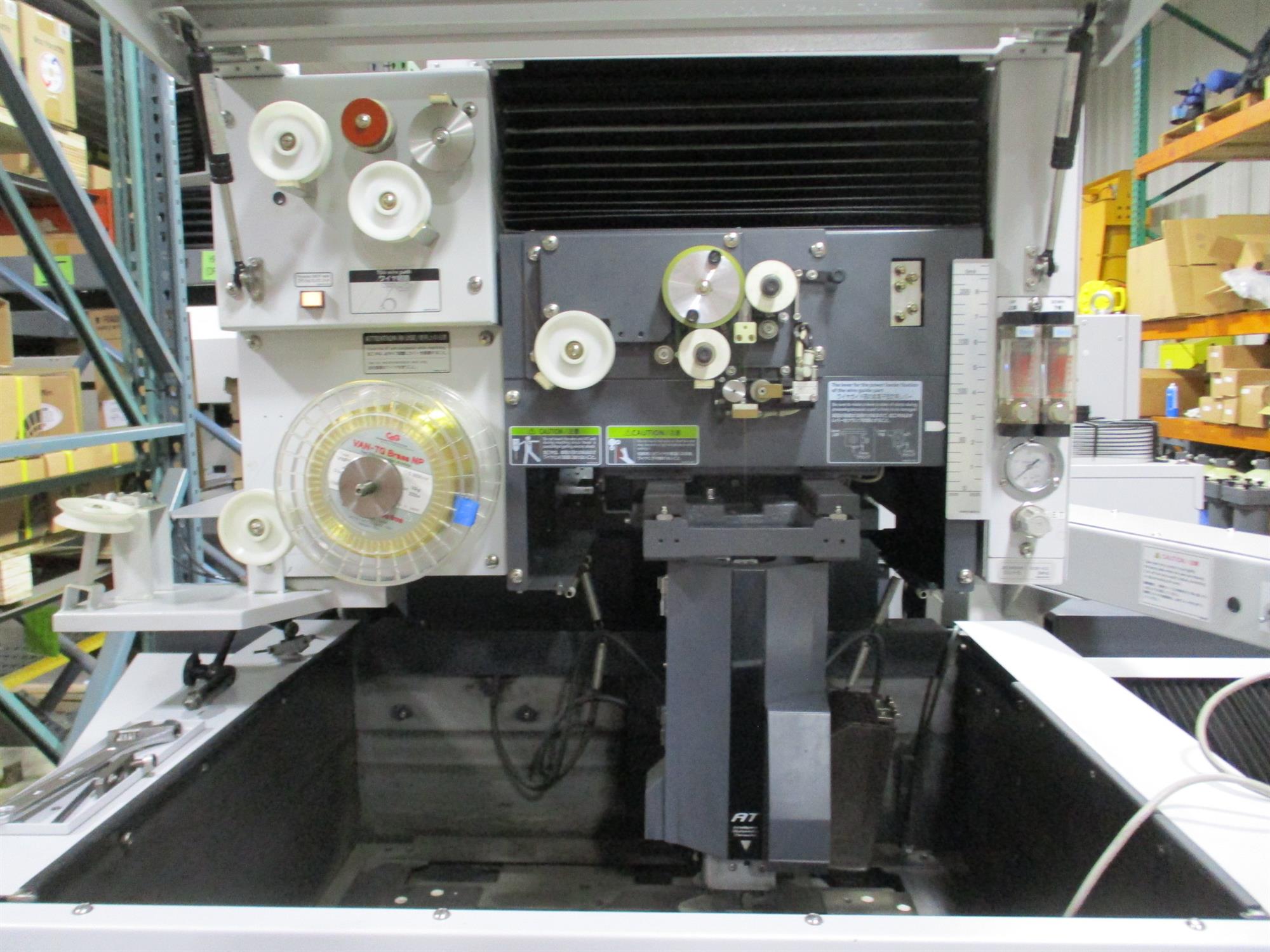

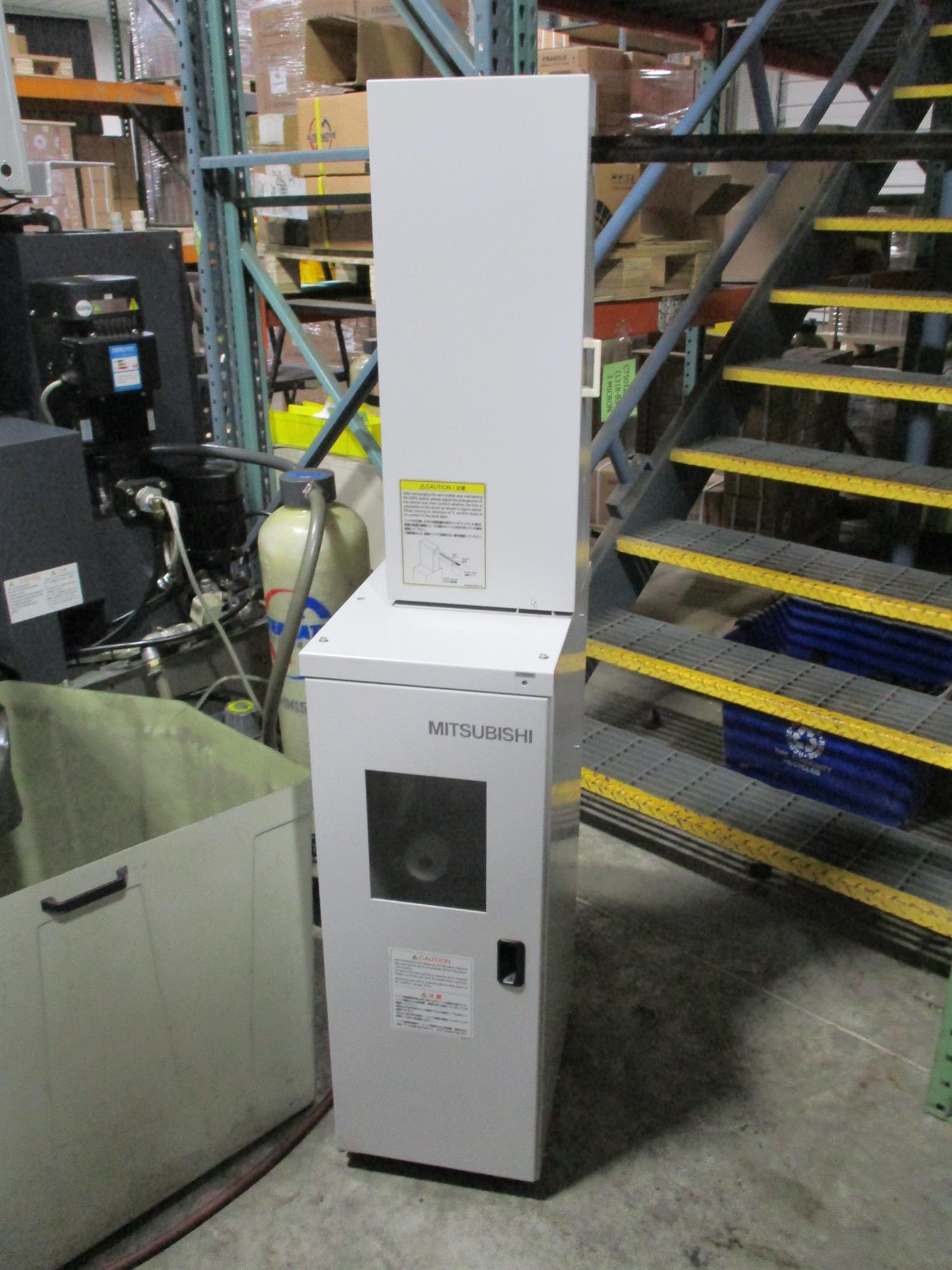

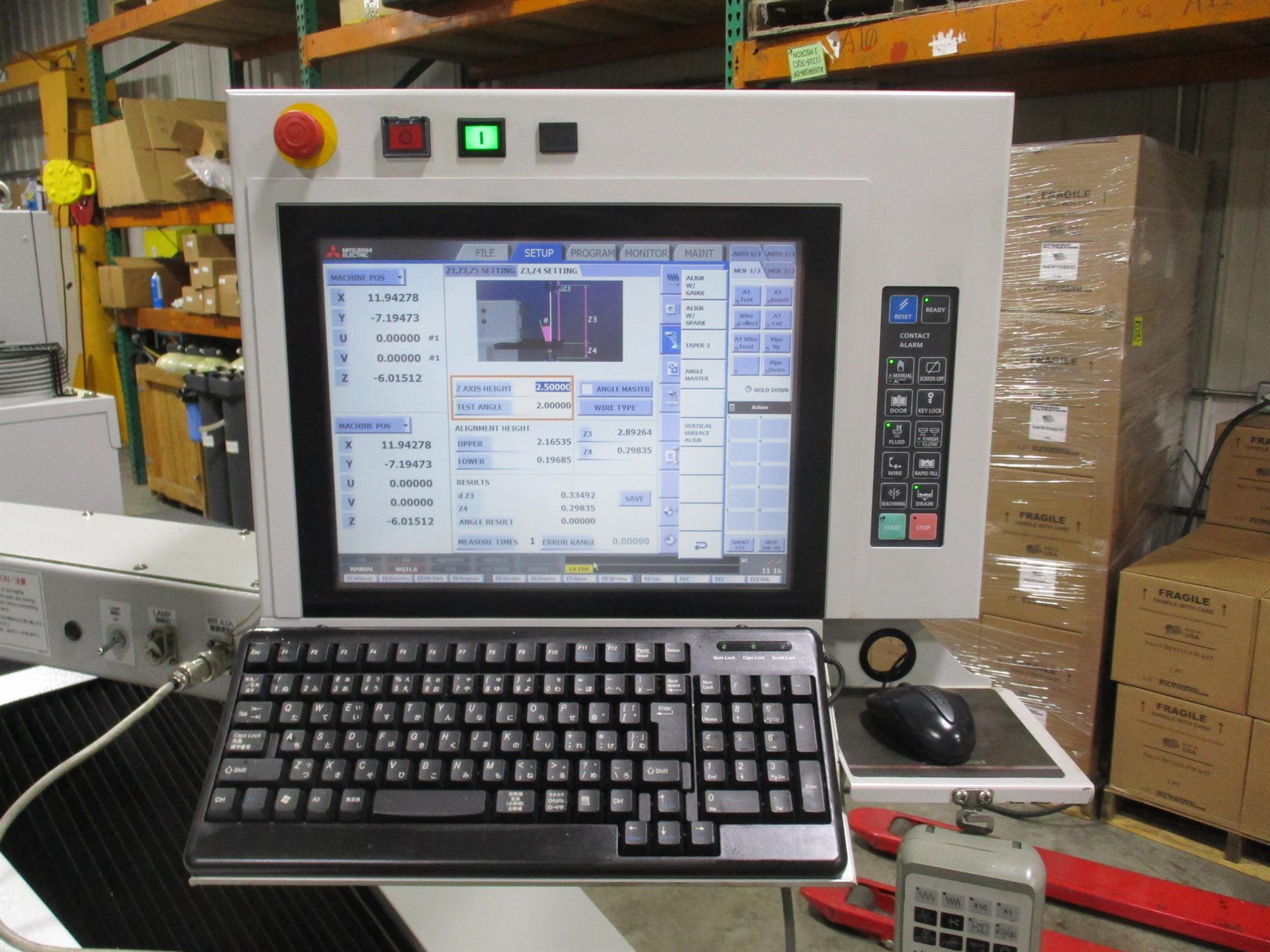

The Mitsubishi MC1200S MED+PRO3 CNC Wire EDM includes Linear Motor Drive System (No Ball Screws), AT Automatic Wire Threader, Submerged Cutting, 15 Inch Touchscreen M700 Control Di Electric Chiller, Wire Alignment Device, Automatic Way Lubrication, 20kg Spooler.
Specifications:
- Maximum Workpiece Dimensions: 31.9” x 27.6” x 8.5”
- Maximum Workpiece Weight: 1,102 lbs.

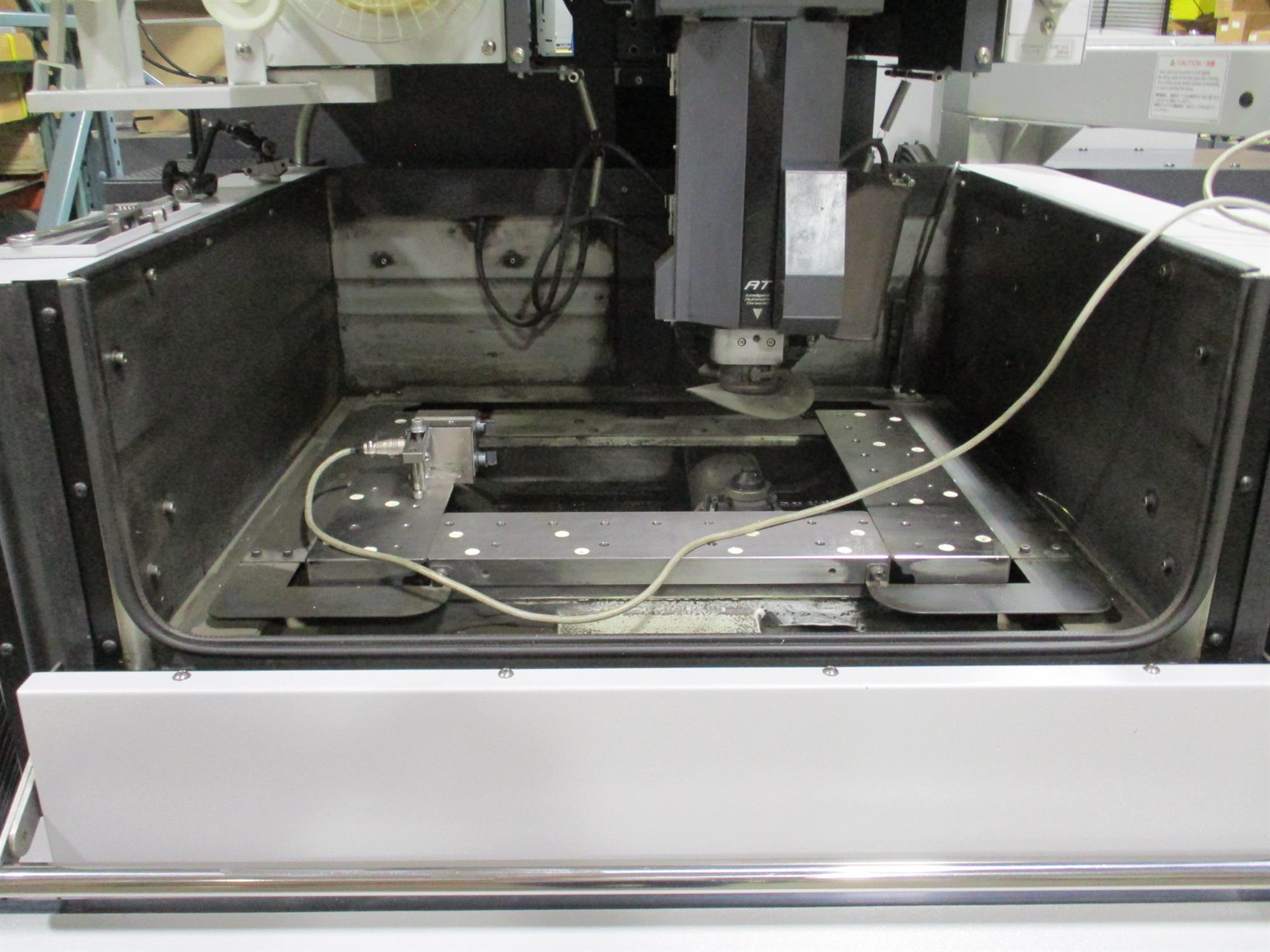

- Table Dimensions: 25.3” x 21.3” (3 Sided, Hardened)
- Machine Range: 15.7” x 11.8” x 8.7”
- U/V Travel: +/- 2.36”
- Wire Diameter: .004” - .012” (.010” Guides)
- Max. Workpiece AWF Height: 8.0”
- Machine Dimensions: 81” x 108” x 80”
- Machine Weight: 5,952 lbs.
- Input Power (Total): 13.5 KVA – 200 -220V, 3 Phase
