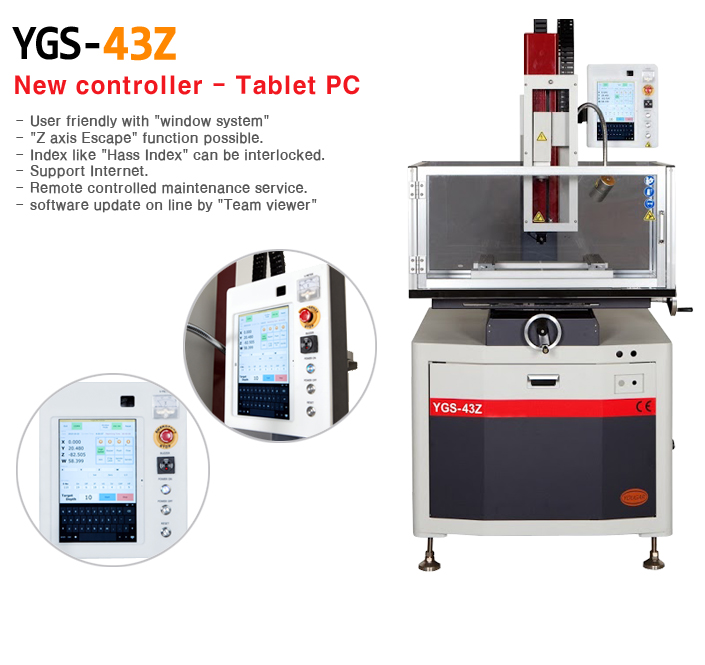

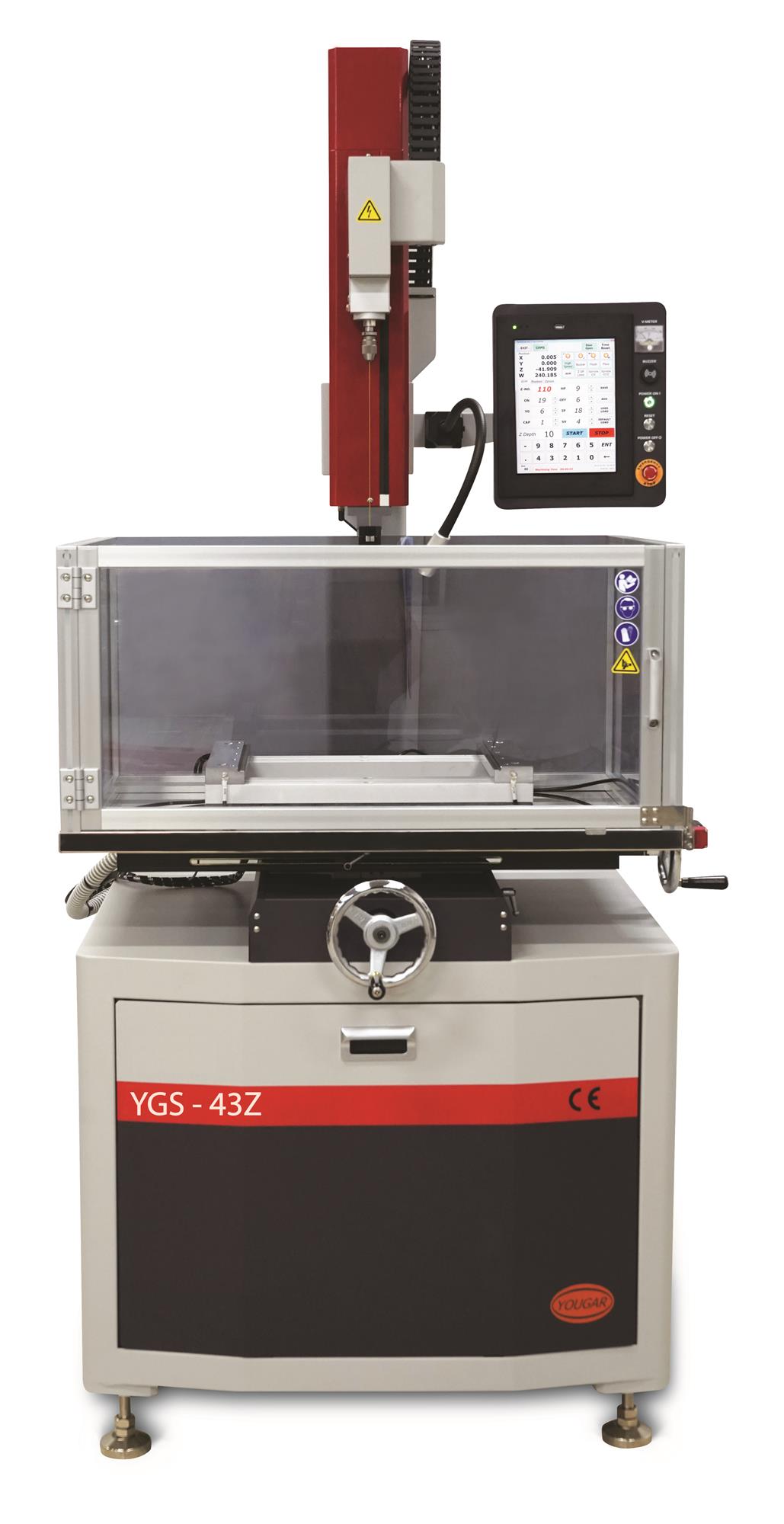

Yougar YGS-43Z Small Hole EDM Drill Popper
Description:
The Yougar YGS-43Z Small Hole EDM Drill Popper features:
Granite Worktable maximizes precision and excellent electrical isolator
Aluminum & Stainless Steel Rail System eliminates the need for expensive fixturing
Dual-Side Cabinet Design completely separates internal plumbing from electrical components
Closed Loop DI Filtration minimizes shop floor footprint and eliminates need to purchase additional filtration units
Step Motors offer excellent stability and high precision drilling with precise resolvability of 0.1µm (.00003937”) on Z, W
Precision Ball Screws offer high speed processing and precise working using 1 µm control purse.
Glass Scale Feedback on X, Y Axis enables closed loop feedback system using glass scales
Linear Motion Guides Extended machine life with the use of linear motion guides on all 4 axes (X, Y, Z, W)
65 Amp Power Supply
LED Worklight
Specifications:
- Travel of X, Y, Z, W Axis: x15.75", y11.75", z15.75", w15.75"
- Machine Net Weight: 1500 lbs.
- Machine Footprint: 35" x 39" x 96"
- Granite Table Size: 13.75" x 19.75"
- Work Table Size: 25.75" x 35.75"
- Max Height of Work Piece: 15.75"
- Max Weight of Work Piece: 440 lbs.
- Electrode Diameter: Ø .004 in ~ Ø .118 in
- Power Rating: 220V / 5KVA
- Input Power: 1 Phase, 220V, 50-60Hz
