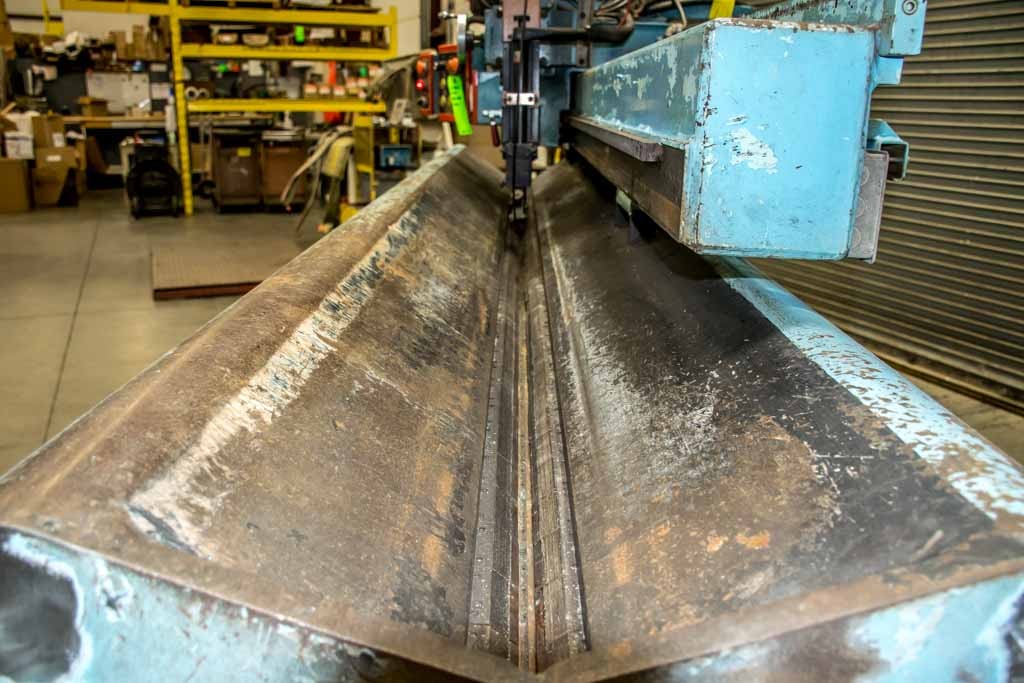

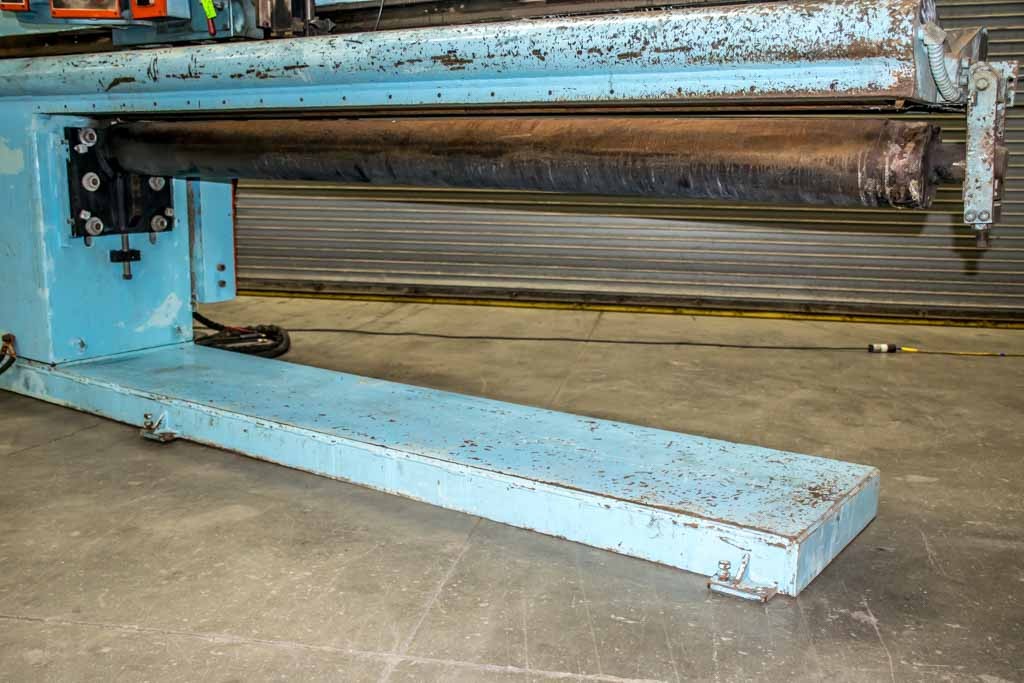

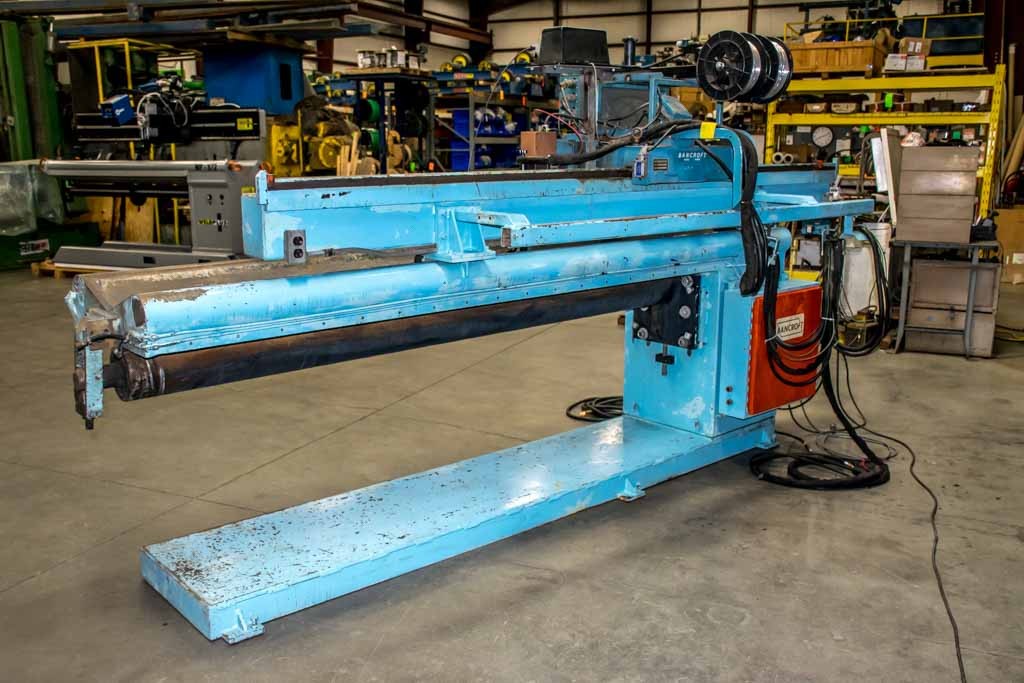

Used Bancroft Weld-Along 400 Tig Seam Welder

Part Number: Weld-Along 400
$59,950.00

QTY

Description:

View Quotation with Specifications

The used Bancroft Bancroft Weld-Along 400 TIG Seam Welder includes Jetline 9629 Carriage Control, Arc Products AVC-5 Arc Voltage Control, Jetline CWF 10B Cold Wire Feeder and Gas Purged Back Up Bar.

The Bancroft Weld-Along 400 TIG Seam Welder is a specialized welding machine designed for seam welding applications. Seam welding is commonly used in the fabrication of cylindrical or tubular structures, such as pipes and tanks. The Bancroft Bancroft Weld-Along 400 TIG Seam Welder is utilized in industries that require high-quality and consistent welds in longitudinal seams. Applications include the manufacturing of pressure vessels, automotive components, aerospace structures and other cylindrical or tubular assemblies.

Specifications:

  • Maximum Weld Length: 96.0”
  • Maximum Clamping Length: 105.0”
  • Minimum Diameter Capacity: 7.0”
  • Maximum Diameter Capacity: 32.0”
  • Variable Carriage Speed: 0 -100
  • IPM Horizontal Slide Adjustment: 4”
  • Floor Space Required: 156” x 56” x 84”
